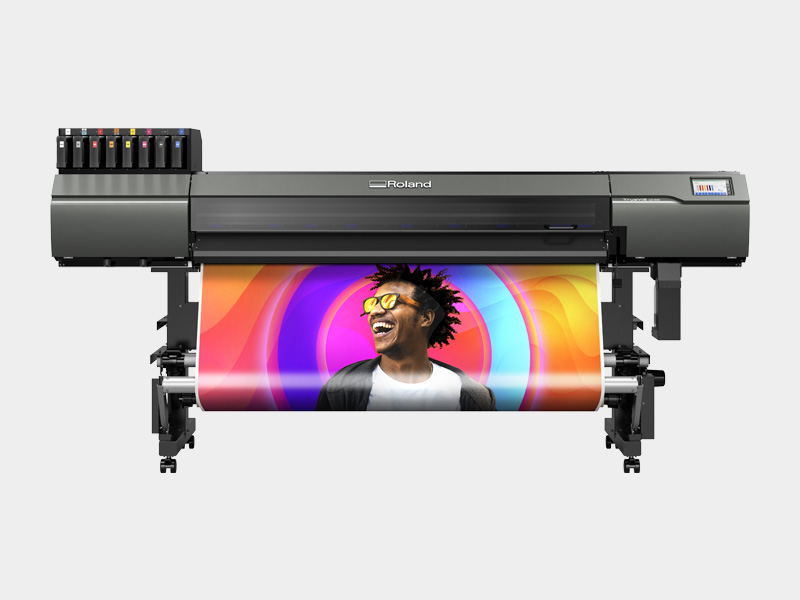

Roland TrueVIS LG Print & Cut

Precomandă

Informatii Produs

Uscare instant cu lampa UV-LED
Ecran tactil de 7 inch
Până la 8 culori în diverse scheme
Disponibil în 3 variante de lățime: 1600 mm, 1346 mm și 736 mm

Beneficii

Calitate garantată
Transport GRATUIT
Asistență și service 24/7
Posibilitate de finanțare

Te rugăm să ne contactezi pentru a afla prețul Solicită oferta

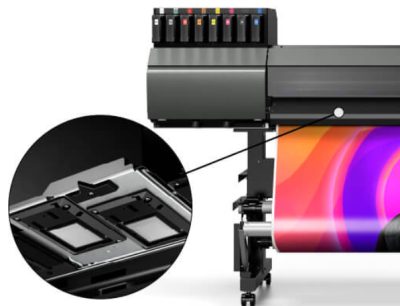

Viteză mare de imprimare

Cu capete de imprimare noi și inovația lămpilor UV-LED cerneala se va usca și stabiliza instantaneu. Faceți pasul către imprimarea la un nou nivel de eficiență: creșteți viteza de producție, calitatea și profitul.

Un șasiu reproiectat, componente de înaltă calitate și o varietate de îmbunătățiri în manipularea suporturilor fac seria LG să fie perfectă pentru imprimarea nesupravegheată a tirajelor lungi, a imprimării/tăierii de mare precizie.

Ai primit o ofertă mai bună?

La Multisign, suntem determinați să-ți oferim cel mai bun preț de pe piață pentru echipamentele Roland – imprimante eco-solvent, uv și textile, gravatoare mecanice și cutter-plottere. Astfel, dacă ai primit o ofertă mai bună de la un alt distribuitor local, echivalăm prețul pe loc!

Model			LG-640	LG-540	LG-300
Printing method			Piezo ink-jet method
Media	Width		335 to 1625 mm (13.2 to 64 in.)	295 to 1371 mm (11.7 to 54 in.)	182 to 762 mm (7.2 to 30 in.)
	Thickness		Max. 1.0 mm (39.3 mil) with liner, for printing Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting
	Roll outer diameter		Max. 250 mm (9.8 in.)
	Roll weight		Max. 45 kg (99 lb.)	Max. 35 kg (77 lb.)	Max. 30 kg (66 lb.)
	Core diameter		76.2 mm (3 in.) or 50.8 mm (2 in.)
Printing / cutting width¹			Max. 1600 mm (62.9 in.)	Max. 1346 mm (52.9 in.)	Max. 736 mm (28.9 in.)
Ink	Type		ECO-UV (EUV5P) 750ml pouch
	Colours		Eight Colours (Cyan, Magenta, Yellow, Black, Gloss, Primer, White, and Red) Eight colours (Cyan, Magenta, Yellow, Black, Primer White, Orange, and Red) Eight colours (Cyan, Magenta, Yellow, Black, Gloss, White, Orange, and Red) Seven colours (Cyan, Magenta, Yellow, Black, White, Orange, and Red) Seven colours (Cyan, Magenta, Yellow, Black, Gloss, Primer, and White) Six colours (Cyan, Magenta, Yellow, Black, Gloss, and White) Four colours (Cyan, Magenta, Yellow, and Black)
Ink curing unit			Built-in UV-LED lamp
Print resolution (dots per inch)			Max. 1200 dpi
Cutting speed			10 to 300 mm/s (0.39 to 11.8 in./s)
Blade force²			30 to 500 gf
Blade	Type		Roland CAMM-1 series blade
	Offset		0 to 1.500 mm (0 to 59 mil)
Software resolution (when cutting)			0.025 mm/step (0.98 mil/step)
Media heating system³			Front heater set temperature: 30 to 55 ℃ (86 to 131 °F)
Connectivity			Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function			Automatic sleep feature
Power requirements			100-120/220-240 Va.c. 50/60 Hz 6.5/3.2 A	100-120/220-240 Va.c. 50/60 Hz 6.5/3.2 A	100-120/220-240 Va.c. 50/60 Hz 5.7/2.6 A
Power consumption	During operation		Approx. 800 W	Approx. 800 W	Approx. 650 W
	Sleep mode		Approx. 85 W
Acoustic noise level	During operation		63 dB (A) or less
	During standby		58 dB (A) or less
Dimensions (with stand)			2902 mm x 748 mm x 1412 mm (114.3 in. x 29.5 in. x 55.6 in.)	2648 mm x 748 mm x 1412 mm (104.3 in. x 29.5 in. x 55.6 in.)	2038 mm x 748 mm x 1412 mm (80.3 in. x 29.5 in. x 55.6 in.)
Weight (with stand)			209 kg (461 lb.)	179 kg (395 lb.)	168 kg (371 lb.)
Environment	During operation⁴	Temperature : 20 to 32 ℃ (68 to 89.6 °F), Humidity: 35 to 80 % RH (no condensation)
	Not operating	Temperature : 5 to 40 ℃ (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation)

Specifications, designs and dimensions listed may be subject to change without notice

¹The length of printing or cutting is subject to the limitations of the program.

²500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.

³Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
Depending on the ambient temperature and media width, the preset temperature may fail to be reached.

⁴Operating environment (Use in an operating environment within this range.)
